autogate - swing gate

OAE 333A Arm
Swing autogate motor

-Max weight of gate, 400kg per wing with force adjustable
-Max length of gate, 5 meters per wing
-Gear box three stages planetary reducer
-The system provides electronic anti-cruising feature, auto reverse & instant stop upon contact
-non underground motor.
-Dual speed design with soft cushion stopping.
-Heavy Duty Stainless Steel Arm
-Backup battery standby for power failure

We are OAE autogate installer. our OAE autogate service technician is well trained and good in providing you OAE autogate service:
1. solving faulty OAE autogate not working 2. check OAE autogate problem and autogate wiring 3. install OAE autogate system 4. repair OAE autogate system 5. OAE autogate remote control and OAE autogate battery

Ranger RGA-222 Arm
Swing auto gate motor

-Max. Weight of Gate:400kg per wing with force adjustable
-Operating Voltage:DC18V for normal speed, DC12V for ending speed
-Driving Method: Electro-mechanical crew driver piston type
-Motor Output:15 watt per arm
Motor Amp.:2.1
-Piston Displace:32cm
-Piston Speed:2.9cm / sec
Opening Speed:90° (10-12 sec)
-Backup battery
Safety Clutch: Hi-Amp Auto-Reverse
-Gear Box: Three stages planetary reducer
-Released Key during power failure

We are Roger autogate installer. our Roger autogate service technician is well trained and good in providing you Roger autogate service:
1. solving faulty Roger autogate not working 2. check Roger autogate problem and autogate wiring 3. install Roger autogate system 4. repair Roger autogate system 5. Roger autogate remote control and Roger autogate battery

Cougar RGA-900 Arm
Swing autogate motor

-slow speed / high speed
-Max Output Power: 80W
-Stroke Speed: 2.4cm/second
-Operation Cycle:10s sec per 90 degree
-Shaft Stroke:312mm
-Motor Gear Box: Heavy duty
-Max Weight of Gate:350kg per wing
-Max Length of Gate:3 Meter per Leaf
-Released key during power failure
-Back-up Battery
-Safety Detection: PVM current detection and high AMP current sensor
-Special designed for gear motor self-alignment

We are Cougar autogate installer. our Cougar autogate service technician is well trained and good in providing you Cougar autogate service:
1. solving faulty Cougar autogate not working 2. check Cougar autogate problem and autogate wiring 3. install Cougar autogate system 4. repair Cougar autogate system 5. Cougar autogate remote control and Cougar autogate battery

Aprigate Boxing Arm
Swing auto gate motor

 -Power Supply: 230VAC
-Motor Power: 24VDC
-Rate Power: 25W/2.2A
-Piston Stroke: 235mm
-Opening time: 8s
-Max. wing width: 3m
-Max. wing weight: 250kg
-Anti-crush safety: high amp overload detection
- recharge-able backup battery

We are Aprigate autogate installer. Our Aprigate autogate service technician is well trained and good in providing you Aprigate autogate service:
1. solving faulty Aprigate autogate not working 2. check Aprigate autogate problem and autogate wiring 3. install Aprigate autogate system 4. repair Aprigate autogate system 5. Aprigate autogate remote control and Aprigate autogate battery

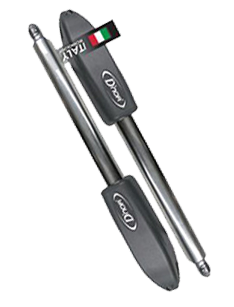

Dnor Swing Arm
Swing autogate motor

 -Max gate weight per leaf is 400 kg
-Full DC operation to avoid any potential electric hazard
-Backup battery standby for power failure
-No underground installation
-With backup battery, the system can still be operated during power failure.
-Dual speed design with soft cushion stopping.
-Automatic dual speed adjustment
-Smooth & Silent gate operation
-Max. Length of Gate 3.5 Meter per wing
-Safety Clutch Electronic Current Sensing
-Limit Device: Electronic Fuzzy Logic

We are Dnor autogate installer. Our Dnor autogate service technician is well trained and good in providing you Dnor autogate service:
1. solving faulty Dnor auto gate not working 2. check Dnor auto gate problem and autogate wiring 3. install Dnor autogate system 4. repair Dnor autogate system 5. Dnor autogate remote control and Dnor auto gate battery

Let's Get In Touch!


Ready to give us a chance to serve you? That's great! Give us a call or whatsapp or send us an email and we will get back to you as soon as possible!

019-3213230
